Notes:
Height is 25 mm
Fabricated out of 25mm Chipboard finished with 1mm High
Pressure Laminate on top with Balancing Laminate Edge bonded with 2mm PVC Lipping.
Can be Anchored on both sides to the Partition or canbe provided with Board.
side or Metal side
| LENGTH | 900 | 1200 | 1200 | 1350 | 1350 | 1500 | 1800 | 1800 | 2400 | 2400 |
|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | 600 | 600 | 750 | 600 | 750 | 600 | 750 | 600 | 750 | 600 |

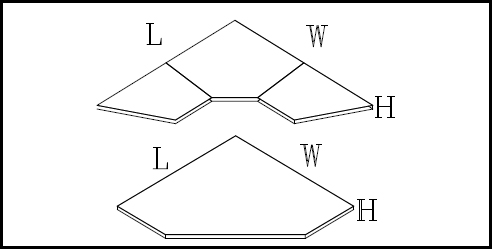

Notes:
Height is 25 mm
Fabricated out of 25 mm Chipboard finished with 1mm High Pressure Laminate on top with Balancing Laminate
All exposed Edges are finished with 2mm PVC Lipping.
Can be Anchored on both sides to the partition Board Sides to the Partition / Board Sides
Or Metal Sides or Conference leg is provided wherever necessary.
| LENGTH | 1500 |
|---|---|
| WIDTH | 1500 |
| DEPTH | 600 |
Notes:
Height is 750mm.
Fabricated out of 25mm Chipboard finished with 1mm High
Pressure Laminate on top with Balancing Laminate.
Modesty Panel & Sides are made out of 18 mm Prelaminated Board.
All the Edges are finished with 2mm for rest of the material
| LENGTH | 900 | 1200 | 1200 | 1350 | 1350 | 1500 | 1500 | 1800 | 2400 | 2400 |
|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | 600 | 600 | 750 | 600 | 750 | 600 | 750 | 600 | 600 | 750 |
Notes:
Height is 750mm.
Fabricated out of 25mm Chipboard finished with 1mm High
Pressure Laminate on top with Balancing Laminate.
Metal Sideis Fabricated out of 40x20x1.5mm M.S. pipe duly
Powder coated with a provision of enclosed Wiring.
Modesty Panel & Sides are made out of 18 mm Prelaminated
All the Edges are finished 2mm for top & 1mm for rest of the material
| LENGTH | 900 | 1200 | 1200 | 1350 | 1350 | 1500 | 1500 | 1800 | 2400 | 2400 |
|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | 600 | 600 | 750 | 600 | 750 | 600 | 750 | 600 | 600 | 750 |

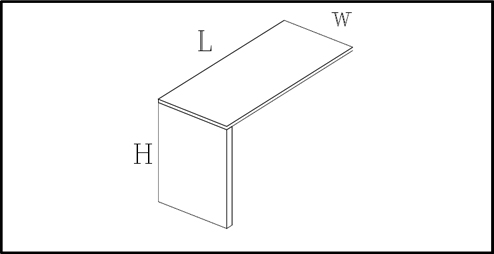

Notes:
Height is 25 mm
Fabricated out of 25 mm Chipboard finished with 1mm .
Pressure Laminate on top with Balancing Laminate.
Board Sides is made out of 18 mm Prelaminated Board.
All the Edges are finished with 2mm thk P.V.C. for top & 1mm for rest of the material
One Side is Connected to the Top with necessary Hardware.
| LENGTH | 900 | 1200 |
|---|---|---|
| WIDTH | 500 | 500 |

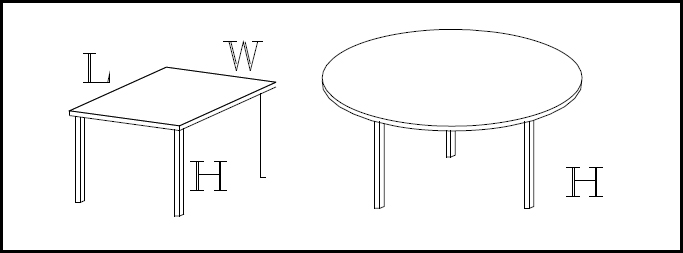

Notes:
Height is 750mm
Top is Fabricated out of 25mm Chip Board finished with 1 mm on Top Balancing Laminates.
All the Edges are finished with 2mm PVC Lipping.
Top is supported with 25mm Dia x 1.5mm Tubular M.S. Pipe with necessary flanges & Couplings to fit on legs on 44 5mm Dia x 1 2mm tubular pipes duly powder coated RUN OFF CONFERNCE TABLE
44.5mm 1.2mm With the Advent of various systems and Hardware options the C.P.U Stand, Stationary Tray,
Hanging Shelves.
Printer Trolleys and Work Lights around a completely user adjustable
concept, enabling rapidity of movement.
| LENGTH | 900 | 1200 | Dia 900 | Dia 1050 | Dia1200 |
|---|---|---|---|---|---|
| WIDTH | 900 | 1200 |

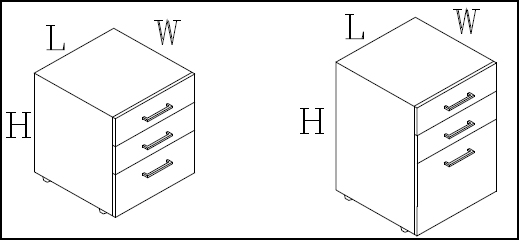

Notes:
The carcase is fabricated out of 18mm prelaminated board.
Inside Drawer is fabricated out of 12mm prelaminated board assembled with Drawer Glides for smooth operation.
Filing Drawer is provided with necessary brackets for holding Filing Jacket.
Drawer Unit is mounted on Table top with necessary hardware.
Central locking system is provided.
| LENGTH | 480 | 480 |
|---|---|---|
| WIDTH | 490 | 490 |
| HEIGHT | 610 | 685 |

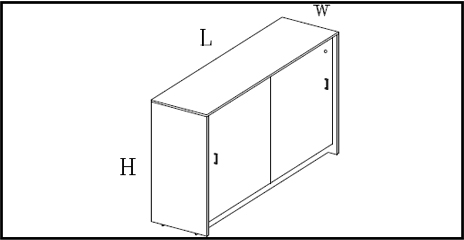

Notes:
The top is finished in high pressure laminate.
Sliding shutters are in 12mm prelaminated board with necessary wheels for easy movement.
Levellers are provided for proper alignment.
Slides and Bottom are fabricated in 18mm prelaminated board while back is of 8mm prelaminated board.
| LENGTH | 750 | 900 | 1200 |
|---|---|---|---|
| WIDTH | 400 | ||
| HEIGHT | 700 |

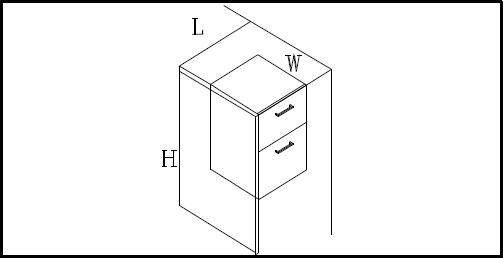

Notes:
The carcase is fabricated out of 18mm prelaminated board.
Inside Drawer is fabricated out of 12mm prelaminated board assembled with Drawer Glides
for smooth operation.
Filing Drawer is provided with necessary brackets for holding Filing Jacket.
Drawer Unit is mounted on Table top with necessary hardware.
Central locking system is provided.
| LENGTH | 300 |
|---|---|
| WIDTH | 500 |
| HEIGHT | 460 |

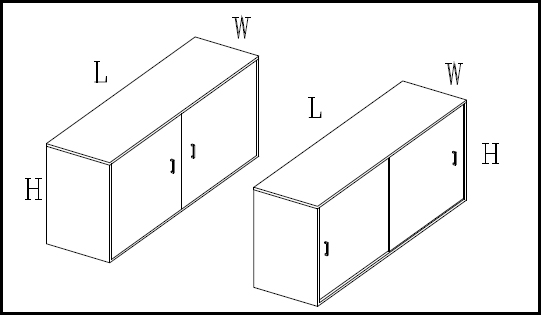

Notes:
Top bottom and Slides are fabricated in 18mm Prelaminated board. While Back is of 8mm prelaminated board.
The Unit can be mounted on Partition or on Wait with necessaary brackets.
The Unit is provided in Three options viz. sliding shutter Openable shutter. And Flap type shutters.
| LENGTH | 750 | 900 | 1200 |
|---|---|---|---|
| WIDTH | 400 | ||
| HEIGHT | 400 |

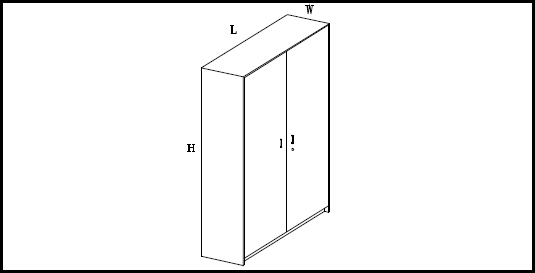

Notes:
All the components are made out of 18mm prelaminated board while back is made out of 8mm prelaminated board.
Levellers are provided for proper Alignment.
Shelves are provided with necessary Knock Down Fittings.
| LENGTH | 750 | 900 | 1200 | ||||
|---|---|---|---|---|---|---|---|
| WIDTH | 440 | ||||||
| HEIGHT | 750 | 900 | 1050 | 1200 | 1350 | 1650 | 2100 |

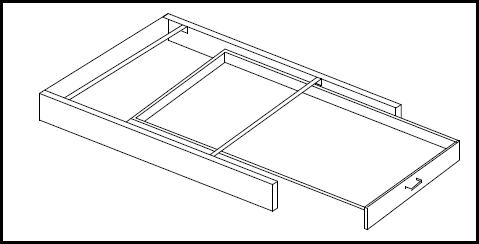

Notes:
The carcase is fabricated out of 18mm prelaminated board.
Inside Drawer is fabricated out of 12mm prelaminated board assembled with Drawer Glides
for smooth operation.
Pencil Drawer Unit is provided with a lock and handle.
It is mounted on Table top with necessary Brackets duly powder coated.
| LENGTH | 480 |
|---|---|
| WIDTH | 490 |
| HEIGHT | 100 |

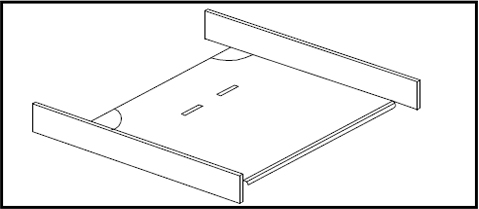

Notes:
Is fabricated in MS sheet duly Powder Coated.
Drawer Runners are provided for smooth operation.
Can be provided with Locking facility.
It is provided with an ergonomical tilting and Table mounting adjustment.
| LENGTH | 585 |
|---|---|
| WIDTH | 470 |
| HEIGHT | 85 |

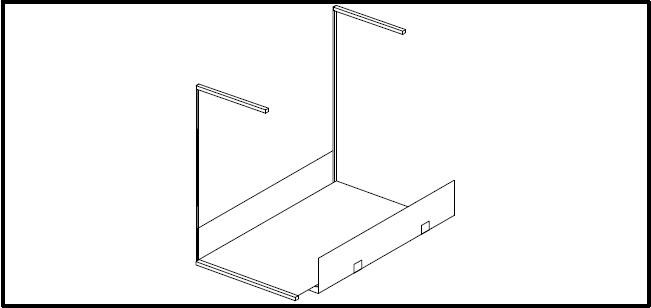

Notes:
Is fabricated out of 14swg M.S. Sheet and 3mm angle duly Powder Coated.
The Width can be Adjusted with necessary WING Nuts depending upon the size of CPU.
| LENGTH | 250 |
|---|---|
| WIDTH | 330 |
| HEIGHT | 560 |
